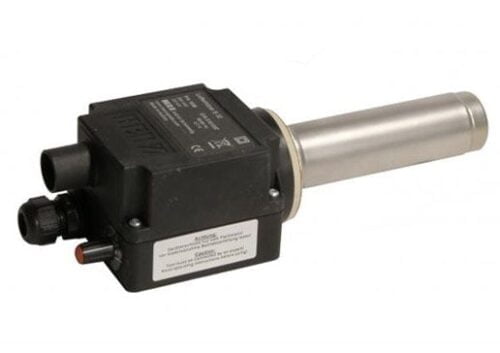

The M50 is an industrial heater for continuous work with external air, has a progressive temperature regulation up to 600 ºC and works with external air.
Available in three different powers and voltages:
- 2200W – 230V
- 3600W – 230V
- 4400W – 400V
M50
Description
Technical specifications
| Item No. | 5101801 | 5101796 | 5101806 | |
| Voltage | V | 1 x 230 | 1 x 400 | |
| Power | W | 2200 | 3600 | 4400 |
| Frequency | HZ | 50/60 | ||
| Max. temperature | ºC | 600 | ||
| Min. amount of air | l/min | 350 | ||
| Air connection | Ø mm | 38 | ||
| Download port | Ø mm | 30 | ||
| Dimensions | (l x to x a) mm | 224.5x85x90 | ||
| Weight | Kg | 0,8 | ||
| Safety Class II | ||||
| Conformity mark | CE | |||
Additional information
| Model | M50/5101351, M50/5101796, M50/5101806 |
|---|
