The PT250 is a machine for welding pipes and fittings in PE, PP, PVDF and other thermoplastics.

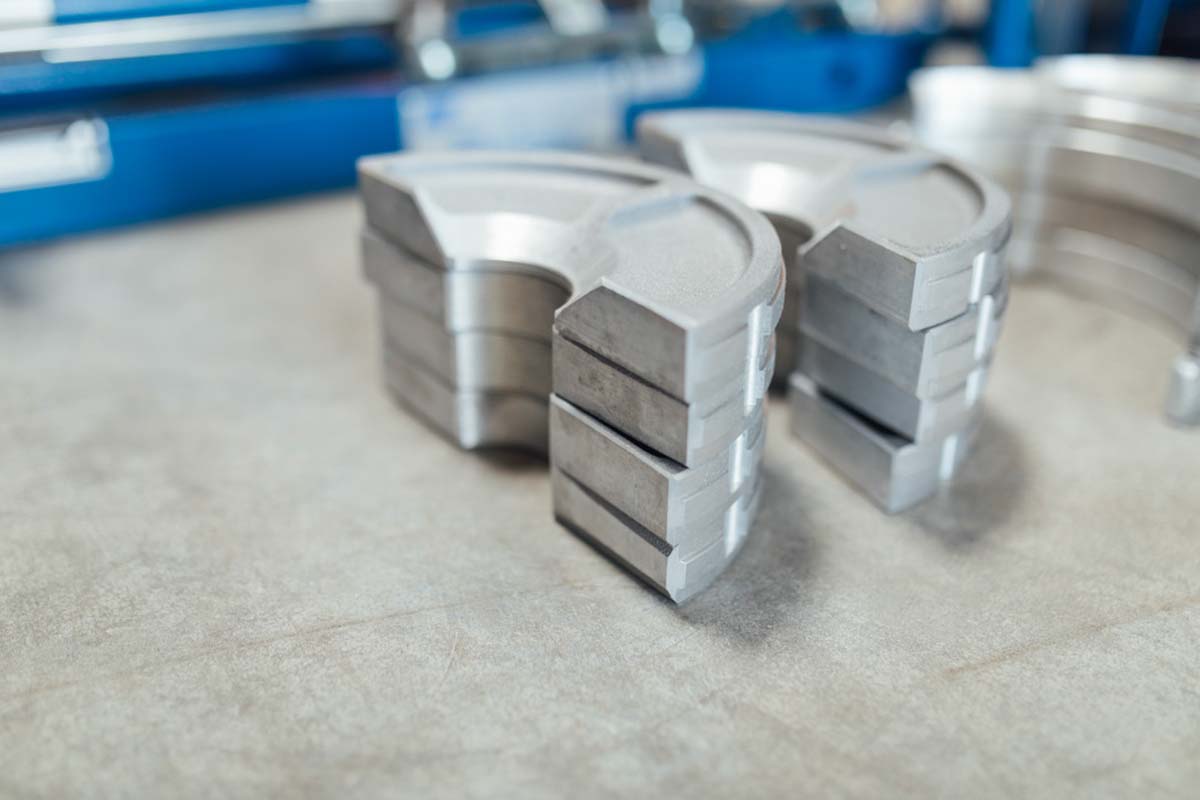

The complete PT250 equipment is supplied with: basic machine diameter 250, detachable heating mirror coated in PTFE, detachable electric cooler and electrohydraulic motor, clamp for accessories diameter 250mm and set of light alloy reducing inserts diameters 63, 75, 90, 110, 125, 140, 160, 180, 200 and 225mm.

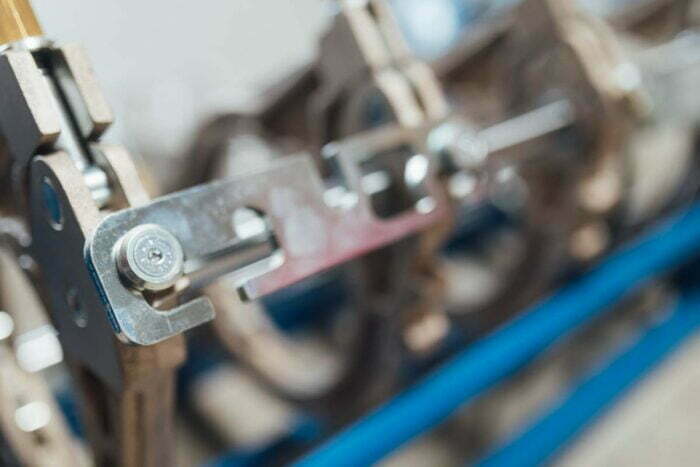

New Beep-Beep system for anchoring the inserts, the screws are over! With a simple click, you can change the reductions, gaining comfort and time.
All Tecnodue PT model machines are prepared to use the LDU system. Reader and printer of the welding data, putting the tube that we are going to weld tells us the parameters to follow and at the end prints us a report indicating if the welding is correct or not.
Range: 63 – 250mm
PT250 Refurbished
Out of stock
Description
Technical specifications
| OPERATING DATA | |
| Ambient temperature | 0… 50ºC |
| Humidity | 95 RH% |
| Temp.. transport and storage | -10… 60ºC |
| ELECTRICAL DATA | |
| Voltage | 230 V |
| Frequency | 50 Hz |
| Machine power | 2.40 KW 10.4 A |
| Heating mirror | IP 54 1.0 KW |
| Refresher | IP 20 0.8 KW |
| Hydraulic unit | IP 44 0.6 KW |
| HYDRAULIC DATA | |
| Maximum working pressure | 100 bar |
| Cylinders Selection | 5.89 cm2 |
| Maximum force | 4,261 N |
| Pressure | 0 – 100 bar |
| Scale precision manometer | CI 1.0 |
| Volumetric capacity of the pump | 1.2 cm3/rev. |
| Capacity | 1.68 l/min |
| Hydraulic oil | ISO 46 |
| Deposit | 1.5 l |
| MECHANICAL DATA | |
| Transmission system | By gear |
| Maximum carriage stroke | 145 mm |
| Scroll bar diameter | 35 mm |
| Distance between cylinders | 360 mm |
| DIMENSIONS | |
| Basic machine | 900x510x520 mm |
| Refresher | 650x480x85 mm |
| Heating mirror | 465x550x65 mm |
| Hydraulic unit | 445x320x270 mm |
| Mirror and Refractor Support | 415x510x370 mm |
| WEIGHT | |
| Basic machine | 45 kg |
| Refresher | 14.5 kg |
| Heating mirror | 10 kg |
| Hydraulic unit | 26 kg |
| Mirror and Refractor Support | 12 kg |
| Transport box | 55 kg |
| Lide holder plate | 6.5 kg |
| Complete set of Inserts | 26,5 |
